Tutorial: Setting Up a CI/CD Pipeline with GitHub Actions and Docker

Introduction

This tutorial will guide you through creating a CI/CD pipeline for a Java project using GitHub Actions, Docker Hub, and Docker. You will learn how to automate the building, testing, and deployment of your application in a containerized environment and later we will run it on a Digital Ocean server.

pipeline pipeline

Prerequisites

Before starting, ensure that you have the following:

  1. A GitHub repository for your Java project.
  2. A Docker Hub account.
  3. Git and Docker installed on your machine for local testing.
  4. A server on Digital Ocean with Docker installed.

CI/CD Pipeline Overview

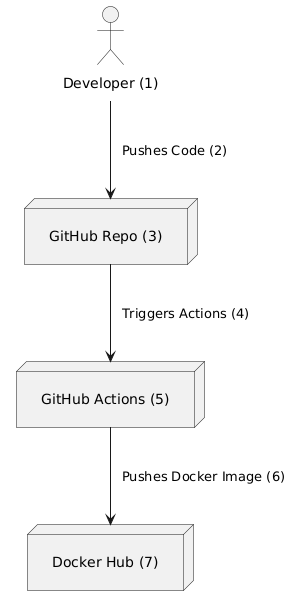

We will mainly be concerned about step 5 in the illustration: What happens when we push our code to the main branch and Github Actions kicks in. The following steps will be executed:

A. Building the Project: GitHub Actions will pull the code from the repository and build it using Maven.

B. Running Tests: All tests will be executed to ensure code quality and functionality.

C. Creating a Docker Image: Once the build and tests pass, a Docker image will be created using a Dockerfile.

D. Pushing the Image to Docker Hub: The created image will be tagged and pushed to Docker Hub for deployment.

E. Running the Image on Digital Ocean: The image will be pulled and run on a Digital Ocean server using docker-compose.

Check this overview of the full pipeline to understand the complete process.

But first, we need to setup the project for CI/CD so GitHub Actions can build and deploy our application:

Step 1: Setting Up the Project for CI/CD

  1. GitHub Actions Workflow File: Create a file named workflow.yml inside the .github/workflows folder in the root of your project.

    # .github/workflows/workflow.yml
    name: CI/CD WORKFLOW
    on:
      push:
        branches: [ main ]

    jobs:
      build:
        runs-on: ubuntu-latest

        steps:
          - name: Checkout
            uses: actions/checkout@v4

          - name: Set up JDK 17
            uses: actions/setup-java@v4
            with:
              java-version: '17'
              distribution: 'corretto'

          - name: Build with Maven
            run: mvn --batch-mode clean package

          - name: Login to Docker Hub
            uses: docker/login-action@v3
            with:
              username: ${{ secrets.DOCKERHUB_USERNAME }}
              password: ${{ secrets.DOCKERHUB_TOKEN }}

          - name: Set up Docker Buildx
            uses: docker/setup-buildx-action@v3

          - name: Build and push Docker image
            uses: docker/build-push-action@v6
            with:
              context: .
              file: ./Dockerfile
              push: true
              tags: ${{ secrets.DOCKERHUB_USERNAME }}/hotel_api:latest

  2. Dockerfile: Create a Dockerfile in the root of your project to define how your application should be built and run inside a Docker container.

     # Start with Amazon Corretto 17 Alpine base image
     FROM amazoncorretto:17-alpine

     # Install curl on Alpine
     RUN apk update && apk add --no-cache curl

     # Copy the jar file into the image
     COPY target/app.jar /app.jar

     # Expose the port your app runs on
     EXPOSE 7070

     # Command to run your app
     CMD ["java", "-jar", "/app.jar"]


  3. Maven Configuration: Make sure you have the maven-shade-plugin in your pom.xml to package your application into a single JAR file:

    <build>
         <finalName>app</finalName>
         <plugins>
             <!-- Maven Shade Plugin for creating a fat JAR -->
             <plugin>
                 <groupId>org.apache.maven.plugins</groupId>
                 <artifactId>maven-shade-plugin</artifactId>
                 <version>3.5.1</version>
                 <configuration>
                     <outputFile>${project.build.directory}/app.jar</outputFile> <!-- Directly specifies app.jar as the output file -->
                     <transformers>
                         <transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                             <mainClass>${project.groupId}.Main</mainClass>
                         </transformer>
                     </transformers>
                     <filters>
                         <filter>
                             <artifact>*:*</artifact>
                             <excludes>
                                 <exclude>module-info.class</exclude>
                                 <exclude>META-INF/*.SF</exclude>
                                 <exclude>META-INF/*.DSA</exclude>
                                 <exclude>META-INF/*.RSA</exclude>
                             </excludes>
                         </filter>
                     </filters>
                 </configuration>
                 <executions>
                     <execution>
                         <phase>package</phase>
                         <goals>
                             <goal>shade</goal>
                         </goals>
                     </execution>
                 </executions>
             </plugin>

             <!-- Maven Surefire Plugin for running tests -->
             <plugin>
                 <groupId>org.apache.maven.plugins</groupId>
                 <artifactId>maven-surefire-plugin</artifactId>
                 <version>3.0.0</version>
             </plugin>
         </plugins>
     </build>



Did you remember to change the mainClass to the name of your main class?

      <mainClass>${project.groupId}.Main</mainClass>

This is the class that contains the main method. Probably the class that starts your Javalin application like dat.Main. The package name is also important, but it is inserted automatically på the ${project.groupId}

  1. Setting Up GitHub Secrets: To authenticate with Docker Hub, add two secrets to your GitHub repository:
    • DOCKERHUB_USERNAME: Your Docker Hub username.
    • DOCKERHUB_TOKEN: Your Docker Hub access token.

    Navigate to SettingsSecrets and variablesActions in your GitHub repository and add these two Repository secrets.

Step 2: Configuring Hibernate for Environment-Specific Configurations

Update your HibernateConfig file to use environment variables to determine which configuration to load. Depending on the version of HibernateConfig you are accustomed to, you may need to refactor it to use environment variables. Maybe it’s already using environment variables, in which case you can skip this step.

Otherwise, this setup will help switch between test, development, and production configurations.

HibernateConfig.java

public class HibernateConfig {

    public static EntityManagerFactory getEntityManagerFactory() {
        if(System.getenv("PRODUCTION") != null) {
            return setupHibernateConfigurationForProduction();
        }
        return IS_TEST ? getEntityManagerFactoryConfigTest() : getEntityManagerFactoryConfigDevelopment();
    }

    private static EntityManagerFactory setupHibernateConfigurationForProduction() {
        Properties props = new Properties();
        props.put("hibernate.connection.url", System.getenv("JDBC_DATABASE_URL"));
        props.put("hibernate.connection.username", System.getenv("JDBC_DATABASE_USERNAME"));
        props.put("hibernate.connection.password", System.getenv("JDBC_DATABASE_PASSWORD"));
        return new Configuration().addProperties(props).buildSessionFactory();
    }

    // Other configuration methods for development and test environments
}

Make sure to set the following environment variables on your Digital Ocean server:

  • PRODUCTION
  • JDBC_DATABASE_URL
  • JDBC_DATABASE_USERNAME
  • JDBC_DATABASE_PASSWORD

Many of us have used a version containing something like this:

private static Properties setDeployedProperties(Properties props) {
        String DBName = System.getenv("DB_NAME");
        props.setProperty("hibernate.connection.url", System.getenv("CONNECTION_STR") + DBName);
        props.setProperty("hibernate.connection.username", System.getenv("DB_USERNAME"));
        props.setProperty("hibernate.connection.password", System.getenv("DB_PASSWORD"));
        return props;
    }

In that case, we are going to use these environment variables later in the deployment process:

Make sure to set the following environment variables on your Digital Ocean server:

  • DEPLOYED
  • DB_NAME
  • CONNECTION_STR
  • DB_USERNAME
  • DB_PASSWORD

We will get back to this in a later tutorial when setting up The Hotel API.

Next step

Now that you have set up the CI/CD pipeline for your Java project, you can proceed to the next part of the tutorial: Setting up Postgres.

Happy Coding!
